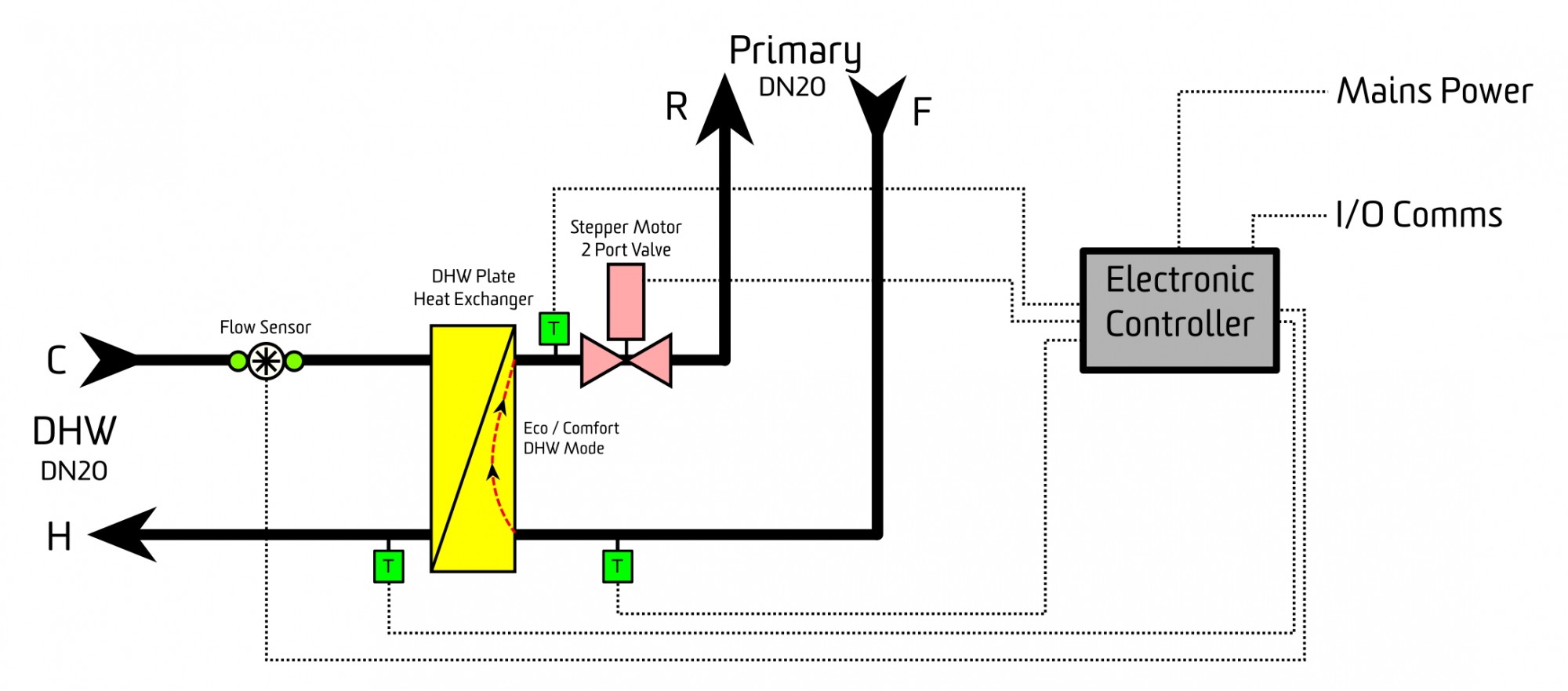

The SLIM Plus HIU is possibly the smallest and most efficient DHW generation unit on the market, using the latest electronic stepper motor controls to provide instantaneous DHW. A flow sensor allows the electronics to respond rapidly to changes in DHW flow rate, maintaining steady output temperatures with very little fluctuation.


HIU Type Hot Water Only
Hot Water Configuration Indirect
Heating Configuration N/A
Heating Temperature Control N/A
Built-in Heat Meter No
Dimensions – HIU Case (mm) 240 (W) x 420 (H) x 90 (D)
Dimensions – inc. Plumbing Jig (mm) 240 (W) x 560 (H) x 90 (D)
Heating Output (nominal) N/A
Hot Water Output (nominal) 80kW

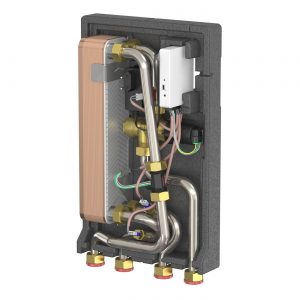

The SLIM Plus comes in an attractive EPP casing with remarkably low heat losses less than 2W. All pipework connections are bottom entry and a pre-plumbing jig is available as an option. A number of optional extras are available, as shown below.



  • Decorative white steel casing wrap
  • Various heat meter models (for mounting external to casing)
  • Landlord security valve or relay kit (for mounting external to casing)
  • DHW recirculation pump kit (for mounting external to casing)
  • Water hammer arrestor (for mounting external to casing)
  • Differential pressure control valve for >2.5 bar ΔP (for mounting external to casing)
  • ModBus communication module (for mounting external to casing)
