The DIGI Camper
Introduction
The Camper is so named because it was originally designed for fitting external to holiday homes on a campsite.
The unit is designed for situations where there is little or no room in the property for the heat interface unit, so it must be placed outside. It therefore comes complete with a casing specifically designed and insulated to cope with the most extreme weather conditions.
The casing is manufactured in fibreglass with a gel-coat finish that can be coloured to match the properties on site, and each case is equipped with two lockable compartments. The upper compartment houses the Heat Interface Unit, and the lower compartment houses the service valves, and spaces the unit off the ground to avoid any risk from flooding.
Internally the unit is essentially a 'Digi' HIU utilising a plate heat exchanger for hydraulic separation of the district heating network and the heating system within the property, with another plate heat exchanger used for generation of domestic hot water.
With the exception of the expansion vessel and filling loop for the central heating, the unit provides all the controls required.
Installation Instructions
DIGI Installation Instructions
Key Features
- Colour coordinated fibreglass casing, with lockable hinged doors
- 30mm PPE insulated secondary case
- Stepper motor control valves as standard
- Option for pressure independent high flow control valves
- Built-in pump
- Allowance for any industry standard heat meter
- Standardised, documented, controls layouts
- Isolation of central heating circuit from heat network
- Provision for flooding to a depth of 600mm
- Primary system bypass to allow flow up to the unit at all times (External to the meter circuit)
- DN25 Copper Pipework
- Safety relief valve
- Drain cocks on both primary and secondary circuits
- Isolation valves
- Dimensions 1405 x 800 x 400mm
Options
- Heat meter fitted within casing
- Expansion vessel within casing
- Filling Loop and pressure gauge within casing
Connections

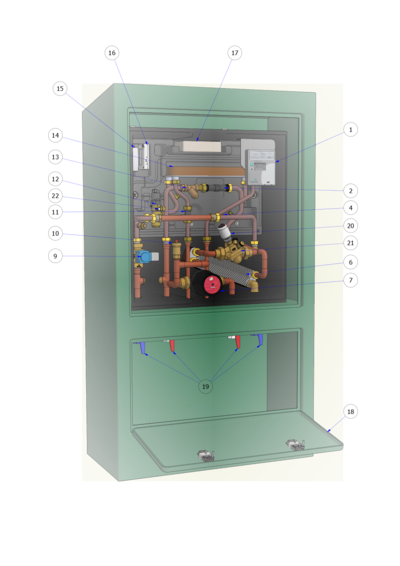

Components
